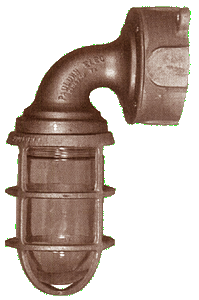

Pauluhn Wall Mounted Fixtures are constructed of heavy duty marine bronze or copper free aluminum alloy. These vapor and watertight fixtures are available in 60 – 300 watt incandescent and 13, 18, or 26 watt compact fluorescent.

USCG / UL Marine

Wall Mount Fixture

	Lamp	Catalog No.	Box Depth	Junction Box	Guard	Globe	Lampholder
	60-100 Watt	707B	1 3/4"	INX6036B	INX 1036B	INX 2006CLR	INX4000
		707BM	2"	INX6037B
	150 Watt	707B7	1 3/4"	INX6036B	INX 1037B	INX 2007CLR	INX4000
		707BM7	2"	INX6037B
	150-200 Watt	708B8	1 3/4"	INX6036B	INX 1038B	INX 2008CLR	INX4000
		708BM8	2"	INX6037B
	200-300 Watt	708B	1 3/4"	INX6036B	INX1020B	INX 2009CLR	INX4000
		708BM	2"	INX6037B
For aluminum, replace "B" in catalog number with "A".
The 13, 18 and 26 watt compact fluorescent lamps will fit the 7" units (707B7 and 707BM7). To order, begin with the prefix "F", then add the suffix 13, 18 or 26. For example: F707B7-26
