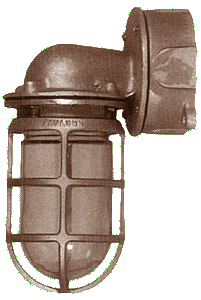

Pauluhn Bracket Fixtures are constructed of heavy duty marine bronze or copper free aluminum alloy. These vapor and watertight fixtures are available in 60 – 300 watt incandescent and 13, 18 or 26 watt compact fluorescent.

USCG / UL Marine

Bracket Mount Fixture

	Lamp	Catalog No.	Box Depth	Junction Box	Guard	Globe	Lampholder
	60-100 Watt	729B	1 3/4"	INX6036B	INX 1036B	INX 2006CLR	INX4000
		729BM	2"	INX6037B
	150 Watt	729B7	1 3/4"	INX6036B	INX 1037B	INX 2007CLR	INX4000
		729BM7	2"	INX6037B
	150-200 Watt	730B8	1 3/4"	INX6036B	INX 1038B	INX 2008CLR	INX4000
		730BM8	2"	INX6037B
	200-300 Watt	730B	1 3/4"	INX6036B	INX1020B	INX 2009CLR	INX4000
		730BM	2"	INX6037B
For aluminum, replace "B" in catalog number with "A".
The 13, 18 and 26 watt compact fluorescent lamps will fit the 7" units (729B7 and 729BM7). To order, begin with the prefix "F", then add the suffix 13, 18 or 26. For example: F729B7-26
